Blind Corner Organizers

Blind Corner Organizers for base cabinets provide functional storage with a half moon shaped
wood 2 Shelf (Pivot and Slide) lazy Susan shelving.

These digital images of Cordelia Cabinets finishes are to be utilized as sales support only. These images will vary in color depending upon your computer’s color setting and are not intended for actual color match. Please see a Cordelia Cabinets color chip when selecting color. Other door styles and color options may be available. Contact your Cordelia Cabinets sales associates for more information.

Blind Corner Organizer Styles

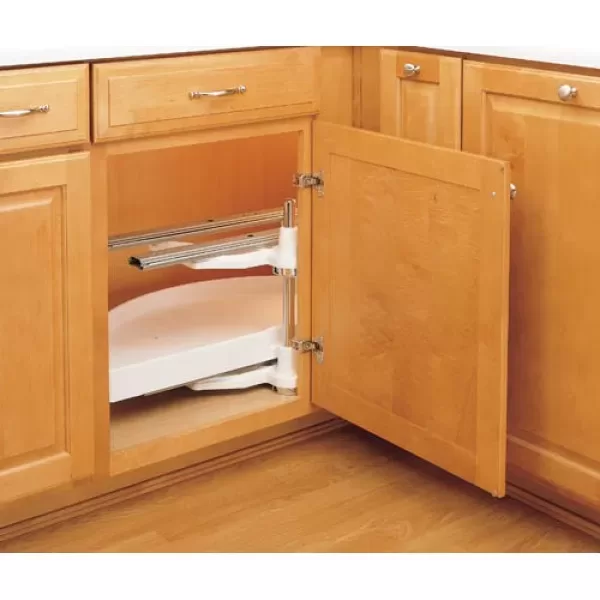

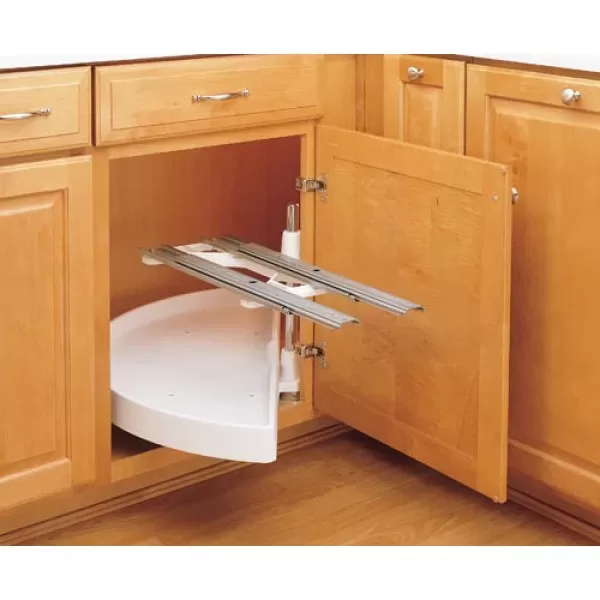

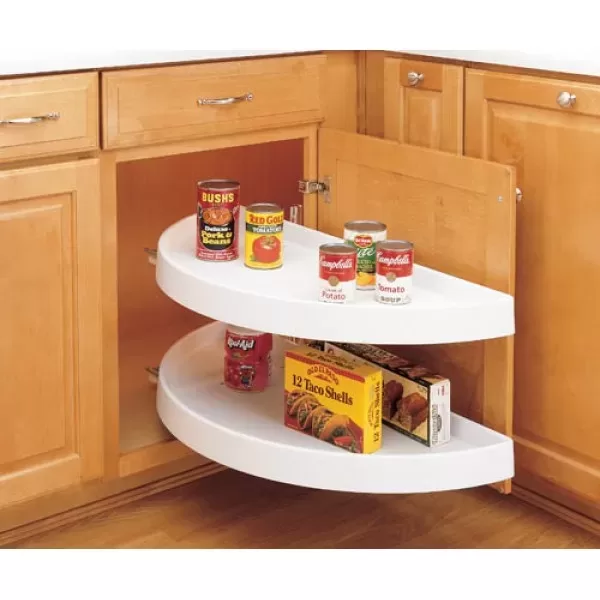

BCO - 6882 | Lazy Susan Half-Moon 2 Shelf (Pivot and Slide)

Every blind corner base cabinet can become functional with Rev-A-Shelf’s Half Moon Shelf System. The Half Moon Series includes standard and 90-degree hinge euro brackets and chrome-plated shaft and mounting brackets to help distribute the weight from the cabinet wall to the floor of the cabinet. In addition, the color coated shelf supports match the shelf and provide maximum deflection support.

6882-31-15-570

(2) Almond Shelves and pivot and slide hardware
13 1/4″ minimum required opening
2-Shelf 31″ Polymer Half Moon Susans
Designed for a blind corner cabinet application
Limited lifetime warranty

6882-31-11-570

(2) White Shelves and pivot and slide hardware
13 1/4″ minimum required opening
2-Shelf 31″ Polymer Half Moon Susans
Designed for a blind corner cabinet application
Limited lifetime warranty

6882-33-15-570

(2) Almond Shelves and pivot and slide hardware
16-1/8″ minimum required opening
2-Shelf 33″ Polymer Half Moon Susans
Designed for a blind corner cabinet application
Image shown is of 31″ model. Actual unit is 33″.
Limited lifetime warranty

6882-33-11-570

(2) White Shelves and pivot and slide hardware
16-1/8″ minimum required opening
2-Shelf 33″ Polymer Half Moon Susans
Designed for a blind corner cabinet application
Image shown is of 31″ model. Actual unit is 33″.
Limited lifetime warranty

6882-39-15-570

(2) Almond Shelves and pivot and slide hardware
19 1/4″ minimum required opening
2-Shelf 39″ Polymer Half Moon Susans
Designed for a blind corner cabinet application
Image shown is of 31″ model. Actual unit is 39″.
Limited lifetime warranty

6882-39-11-570

(2) White Shelves and pivot and slide hardware
19-1/4″ minimum required opening
2-Shelf 39″ Polymer Half Moon Susans
Designed for a blind corner cabinet application
Image shown is of 31″ model. Actual unit is 39″.
Limited lifetime warranty

Physical Specifications
Part # Width (min to max) Depth (min to max) Height (min to max) Weight Color : Finish
6882-31-15-570 31″ 15-1/2″ 15-7/8″ 23 lbs. Almond : Polymer
6882-31-11-570 31″ 15-1/2″ 15-7/8″ 23 lbs. White : Polymer
6882-33-15-570 33″ 16-1/2″ 15-7/8″ 26 lbs. Almond : Polymer
6882-33-11-570 33″ 16-1/2″ 15-7/8″ 26 lbs. White : Polymer
6882-39-15-570 39″ 19-1/2″ 15-7/8″ 34 lbs. Almond : Polymer
6882-39-11-570 39″ 19-1/2″ 15-7/8″ 34 lbs. White : Polymer

Minimum Cabinet Opening
Face Frame Part # Width Depth Height
6882-31-15-570 13-1/4″ ” ”
6882-31-11-570 13-1/4″ ” ”
6882-33-15-570 16-1/8″ ” ”
6882-33-11-570 16-1/8″ ” “
6882-39-15-570 19-1/4″ ” “
6882-39-11-570 19-1/4″ ” “

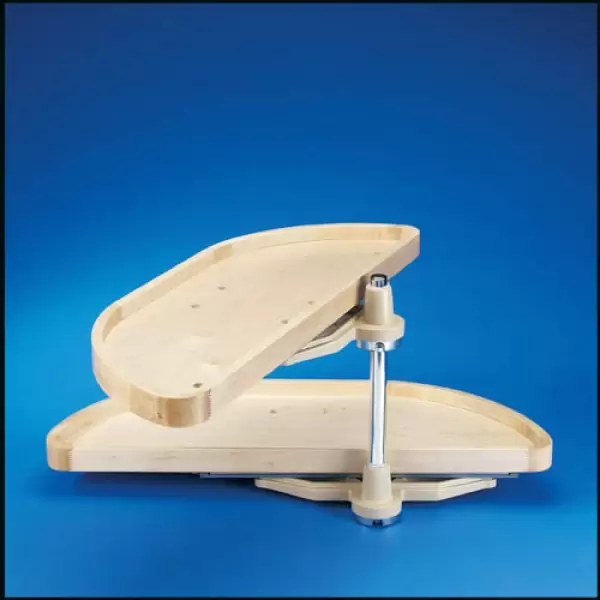

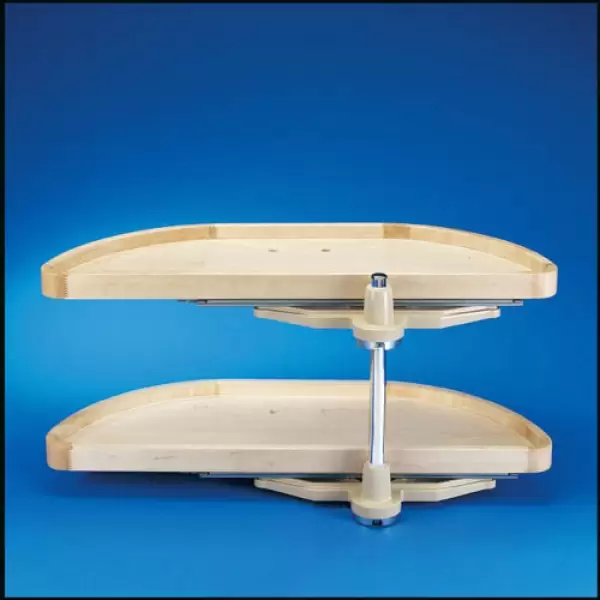

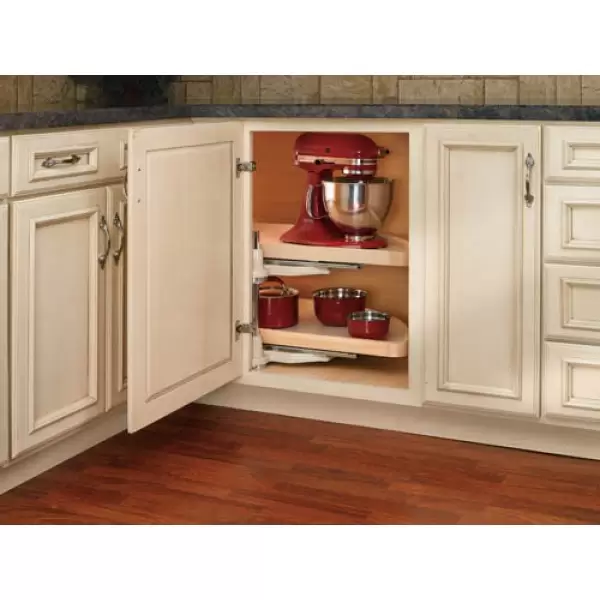

BCO - 4WLS882 | Lazy Susan Half-Moon Wood 2 Shelf (Pivot and Slide)

This beautiful blind corner cabinet solution is made of 5/8″ thick high-density multi-ply shelf with 1″ high solid wood rim and is protected with a UV-cured clear coat finish. Drilled for Rev-A-Shelf hardware, the two shelf system features pivot and pull slides that are adaptable to left or right hand cabinet applications.

4WLS882-32-570

2-Shelf 32″ Half Moon Wood Lazy Susan
Limited lifetime warranty
Minimum Framed opening 12″
Pivot and slide hardware
Wood 2-Shelf Set

4WLS882-35-570

2-Shelf 35″ Half Moon Wood Lazy Susan
Limited lifetime warranty
Minimum Framed opening 15″
Pivot and slide hardware
Wood 2-Shelf Set

4WLS882-38-570

2-Shelf 38″ Half Moon Wood Lazy Susan
Limited lifetime warranty
Minimum Framed opening 18″
Pivot and slide hardware
Wood 2-Shelf Set

Physical Specifications
Part # Width (min to max) Depth (min to max) Height (min to max) Weight Color : Finish
4WLS882-32-570 12 to 32″ 32″ 18″ 27 lbs. Natural : Wood
4WLS882-35-570 15 to 35″ 35″ 18″ 31 lbs. Natural : Wood
4WLS882-38-570 18 to 38″ 38″ 18″ 34 lbs. Natural : Wood

Minimum Cabinet Opening
Face Frame Part # Width Depth Height
4WLS882-32-570 12″ 22-5/8″ ”
4WLS882-35-570 15″ ” ”
4WLS882-38-570 18″ ” “
